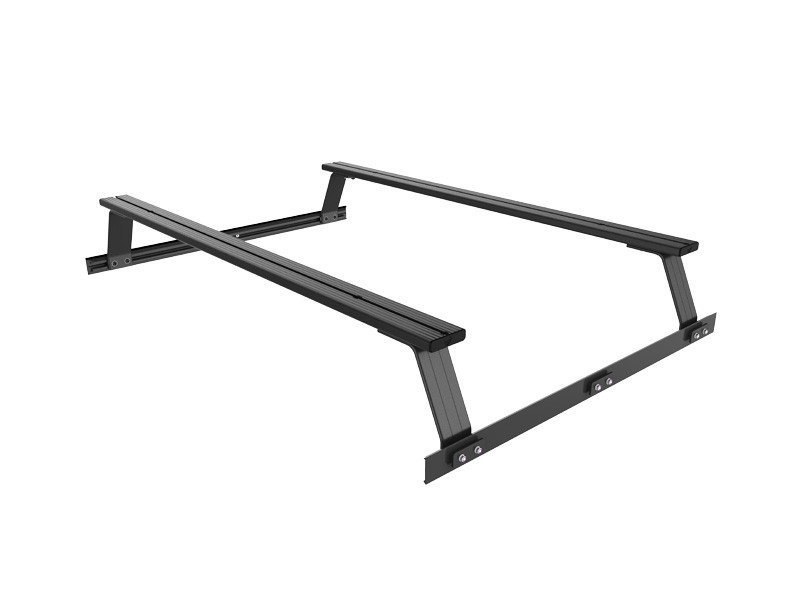

Pickup Truck Load Bed Load Bar Kit / 1475mm(W)

KRLB006 – Pickup Truck Load Bed Load Bar Kit / 1475mm(W) – by Front Runner
Consisting of:
2 x LASS026 – Universal Load Bed Leg / Tall (Pair) – by Front Runner 1 x LBSK017 – Roof Load Bar Pair 1475mm(W) – by Front Runner 1 x TRBU001 – Pickup Load Bed Tracks / 1000mm(L) – by Front Runner

Material used:
Black epoxy powder-coated T6 aluminium High strength steel
Approximate Installed Weight 9kg (20lbs)
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8”) to the height of the Foot or Grab-On Foot Foot listed above.If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8”) to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8”) to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width 130mm (5”)Length 1580mm (62”)Height 220mm (9”)

Shipping Weight:
Weight 10.6kg (23.3lbs)
